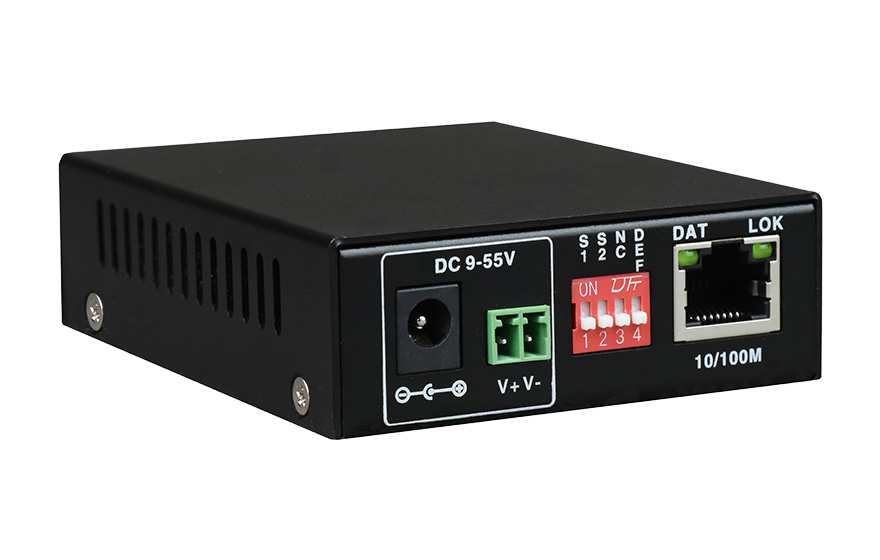

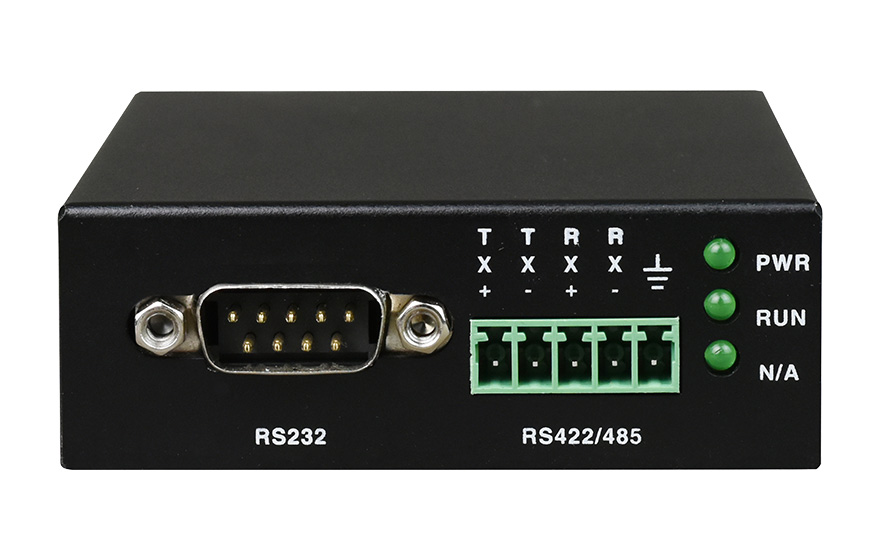

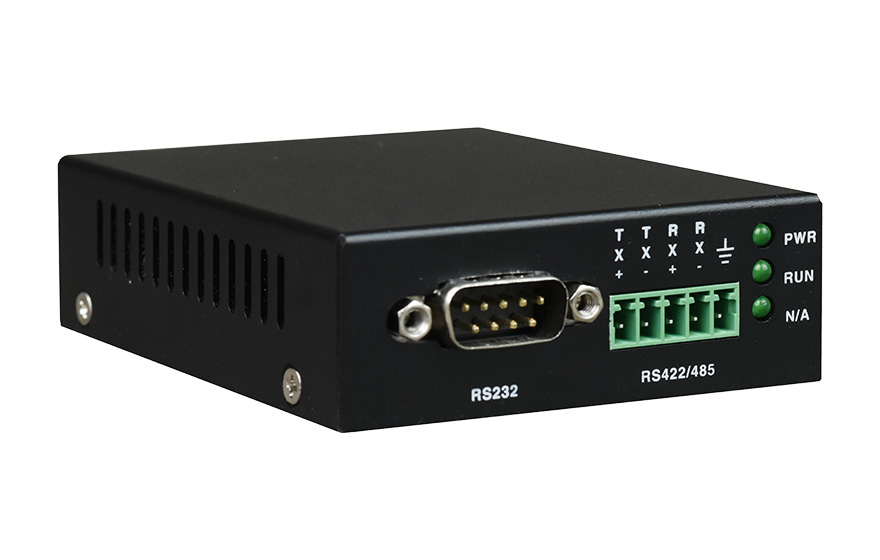

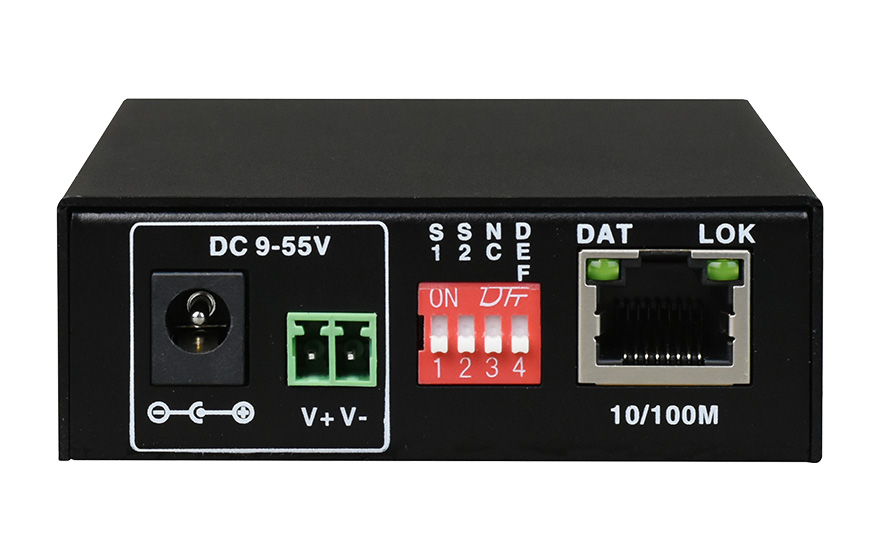

1 channel RS232/422/485 serial to Ethernet converter

Type:FCT-S1 MessageShare

Description:1 Ethernet interface; 1 channel rs232/422/485 serial port.

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This serial to ethernet converter is a high-performance serial port networking server from serial port to 10/100m Ethernet developed by our company based on independent software. It completes the transparent transmission from serial port to Ethernet network.

The serial port of the device supports RS232 RS422 and RS485 interfaces Ethernet port and the serial interface of the device can be converged (in the form of IP packet) to Ethernet data interface. Convenient serial port data after the long - distance extension of data management to meet the needs of different ways of management software. IP packet mode serial port can use Socket communication or redirection software virtual serial port communication.

Can be used in many embedded network control applications:

- smart home devices: smart home gateway smart socket smart switch

- security access control: network access control alarm equipment infrared detection alarm remote card reader

- network IO controller: industrial remote IO input remote relay control

- industrial automation

- building intelligence and energy monitoring

- medical monitoring equipment

Functional Properties

◆ Integrated full - function serial port to TCP/IP software easy to use.

◆ Ethernet interface 10M/100M full/half duplex adaptive and cross through adaptive.

◆ Auto-nego Full&half duplex (auto-nego Full&half duplex) auto-cross detection (MDI/MDIX)

◆ Support TCP server TCP client UDP UDP multicast working mode.

◆ As a TCP server it supports simultaneous communication with 100 clients. As a TCP client it can connect to 8 destination IP and ports simultaneously.

◆ Baud rate support 1200 ~ 115200 support hardware and software flow control.

◆ The serial data interface conforms to rs-232 / rs-485 / rs-485 related standards and different bus modes can be set by dialing code.

◆ High density veneer design improve the reliability of the system with easy installation and debugging stable performance characteristics.

◆ Flexible power supply design can use dc9v-dc55v or ac7v-ac48v wide voltage input power supply.

Technical Parameters

◆ Serial interface

Fiber Type: based on the selected SFP module

Connector: SFP port

Maximum transmission distance: based on the selected SFP module(Take 40KM SFP module as an example)

Transmission distance: 40Km @ 9 / 125um single mode fiberattenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ Electrical and mechanical properties

System power supply: AC7V ~ 48V; DC9V ~ 55 v

Power consumption: 5 w or less

Appearance structure: (length × width × height) 93*70*25mm

◆ Ethernet interface(10/100M/1000M)

Agreement: IEEE 802.3 IEEE 802.1q (VLAN)

Speed rate: 10/100m self-adaptive full/half duplex fully self-adaptive

MAC address table: you can learn 8K MAC addresses

Physical interface: RJ45 support auto-mdix (cross/straight line adaptive)

◆ Working environment

Operating temperature: -10℃ -- +60℃

Storage temperature: -40℃ - +85℃

Working humidity: 0% -- 95% (no condensation)

MTBF: > 100000 hours

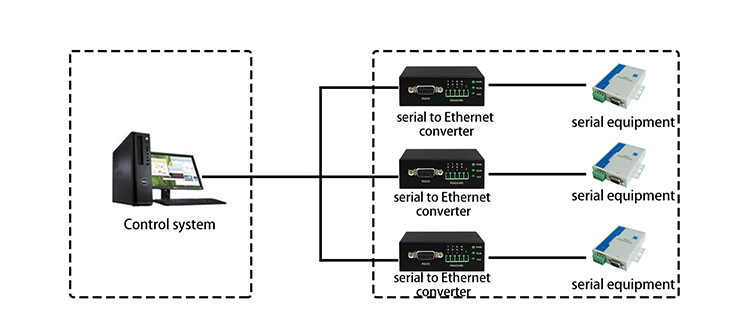

Application Scheme

1 channel RS232/422/485 serial to Ethernet converter
