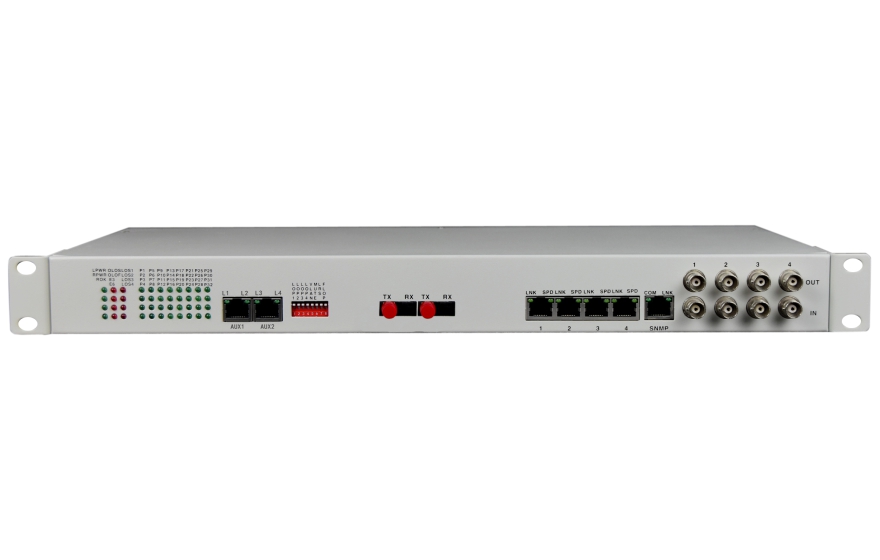

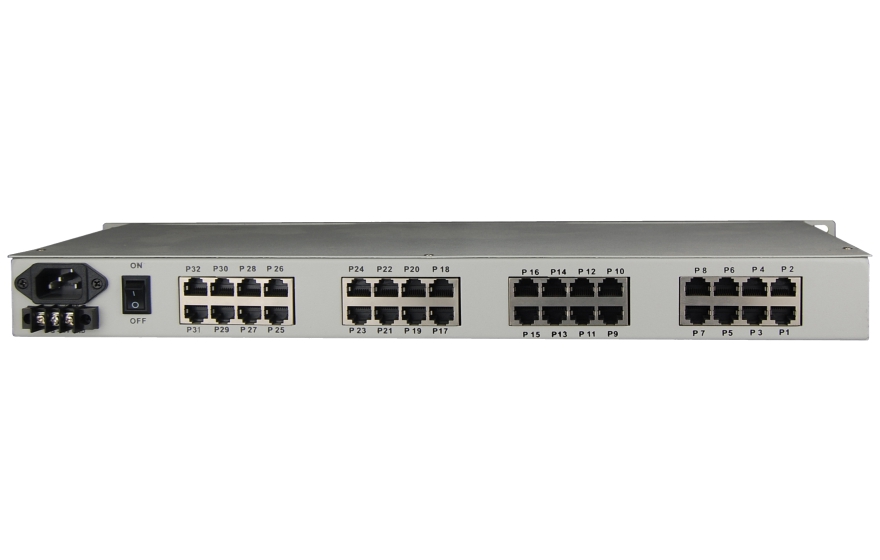

Fiber-32Voice + 4E1 +4*FE( Physical Isolation) Multiplexe

Type:FCP-O32E4F4pR4/FCP-S32E4F4pR4 MessageShare

Description:The equipment provides 32*Voice, 1 ~ 4 E1 interface, 4 physical isolation 100M Ethernet interface (100M per wire speed independent bandwidth), and four extended service interfaces. 4 expansion service interface can be used as RS232/RS485/RS

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

The equipment provides 32*Voice, 1 ~ 4 E1 interface, 4 physical isolation 100M Ethernet interface (100M per wire speed independent bandwidth), and four extended service interfaces. 4 expansion service interface can be used as RS232/RS485/RS422 asynchronous data/TTL signal/dry contact signal and other transmission channels, the application is very flexible.

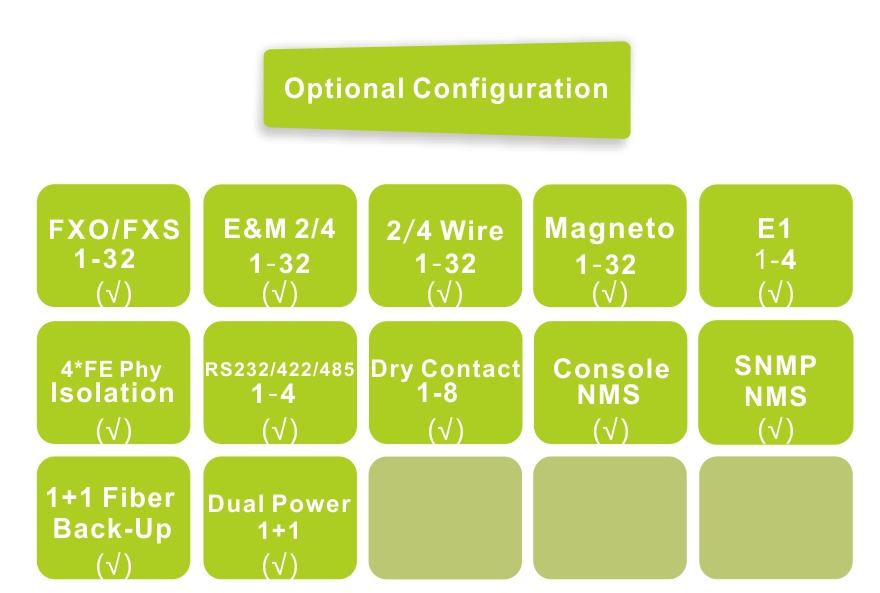

Functional Properties

◆ Based on independent intellectual property rights of integrated circuits;

◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recovery and smooth phase-locked technology;

◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interface,FXO port plug into PBX,FXS port is connected to the user's telephone;

◆ Voice FXO / FXS access, support for caller ID / reverse polarity billing / fax function;

◆ Both sides of the device support FXO+FXS hybrid access;

◆ Provide 4 expansion interface, you can extend 1 ~ 4 asynchronous data, such as RS232/RS485/RS422/TTL, etc .; or 1 to 8 dry contact;

◆ 4*FE Ethernet interface 10/100M, full/half duplex fully adaptive, each independent bandwidth wire speed 100M, the total bandwidth can be two-direction 4*100M;

◆ Each Ethernet port supports Auto-MDIX (cross / direct wire adaptation);

◆ No relay transmission distance of up to 2 to 100 km; to provide the main optical fiber interface and backup fiber interface, dual optical port backup function to ensure that business never interrupted;

◆ Supports Console network management and independent SNMP network management mode;

◆ A variety of power supply options: AC220V, DC-48V / DC24V, etc .; support AC + DC; AC + AC; DC + DC and other dual power backup mode;

◆ Telephone/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;

Technical Parameters

◆ Fiber

Multi-mode Fiber

50/125um 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ Ethernet interface(100/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ EM 2/4 Line

AD: 0dB

DA: -3.5dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: 216X140X31mm(WXDXH)

Piece Weight : 1KG

◆ Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

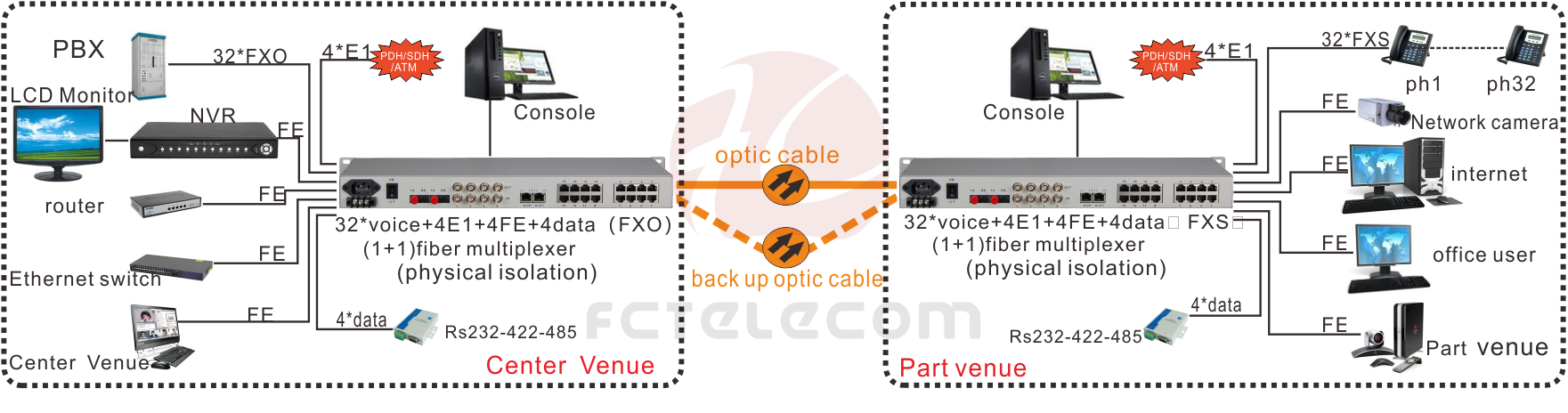

Application Scheme

DataSheet Download
