◆ ba
◆ alarm status can be monitored on the end;
◆ E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;
◆ support FXO voice port FXS ports and ports EM2 / 4 audio interface FXO port and PBX docking port and
the user is connected to FXS telephone;
◆ providing four expansion interface can be extended from 1 to 4 asynchronous data such as RS232 / RS485 / RS422 / Manchester codes;
or 1 to 8-way switch 1 to 4-way voice or two / four-wire audio etc.;
◆ Ethernet interface 10M / 100M full / half duplex fully adaptive support VLAN division;
◆ Each Ethernet ports support Auto-MDIX (cross / straight cable adaptation);
◆ 1-16 road voice access support caller ID function and reverse polarity billing functions;
◆ Support Telephone Number mutual function of each site;
◆ E1 signal can be detected as a barrier to the end device is lost or shut E1;
◆ provide two kinds of clock ways: E1 master clock E1 line clock;
◆ provides three kinds of loopback: E1 local loopback (ANA) the Ethernet interface to the remote loopback (DIG)
command peer Ethernet interface to the local loop (REM);
◆ There are pseudo-random code test function (PATT) to facilitate the opening line which can be when one of E1 BERT to use;
◆ E1 can support N * 64k (N = 1-32) rate that rate is adjustable from 64K-2048K;
◆ multiple power mode options: AC220V DC-48V / DC24V etc;
◆ E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
◆ Ethernet interface(100/100M)
Interface rate: 10/100 Mbps half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
◆ FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
◆ FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
◆ EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
◆ Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
◆ Dimension
Product Size: 485X200X45mm(WXDXH) 19 1U
Simple packaging: 522X198X82mm(WXDXH)
Piece Weight : 2.4KG
◆ Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)
Applications 1

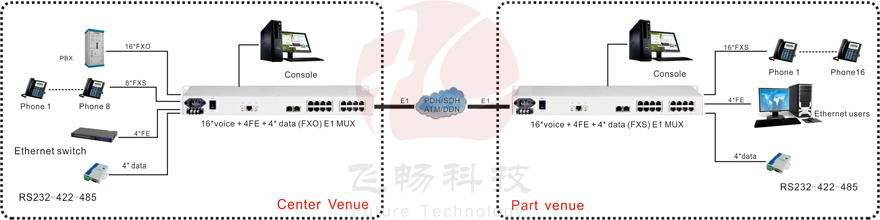

Applications 2
