? Data interface and video interface provide three levels lightning-protection function，which can reach the ITU-T K.21 (10/700μs),
CM (6KV), Impedance (40 Ω) test;
u Fiber
Connector: FC/ ST/PC
Wave length: 850nm/1310nm/1550nm
Transmission distance: multi-mode 0-2km, single-mode 0-25km, 0-60km, 0-120km ;
Transmitting power: better than -6dB
Receiver sensitivity: better than -18dB
Optical dynamic range: 12dB
Optical maximum loss: 12dB
Fiber: single-mode/multi-mode fiber, single fiber
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and
patch panel. Transmission distance may also be limited by fiber optic bandwidth.
u Video interface
Video Bandwidth: 5Hz~10Hz
Rate input & output Level: 1Vp-p
Sampling Frequency: 16.4M (typical value)
Signal Impedance: 75 Ω
Signal Interface: BNC/PAL/NTSC/SECAM
Differential Gain (DG): <1.3 %( typical value)
Differential Phase (DP): <1.3° (typical value)
Signal Noise Ratio (SNR): 63dB
u Date interface
Data Interface: RS-232、RS-422、RS-485、TTL
Data Mode: NRZ、Manchester、Bi-phase
Data Rate: 110bps-115.200Kbps
Interface Port: RJ45
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤5W
u Dimension
Mini Type： 216（width）X140（depth）X31（height）mm
19 inch 1U： 483（width）X138（depth）X44（height）mm
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

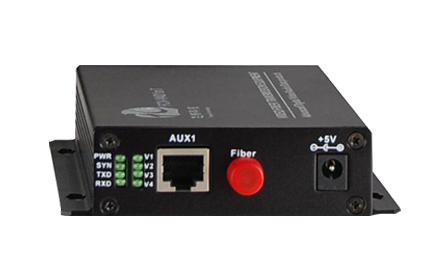

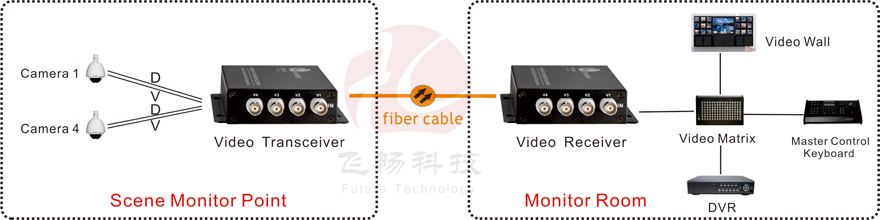

Applications
