u Video interface
Video Bandwidth: 5Hz~10Hz
Rate input & output Level: 1Vp-p
Sampling Frequency: 16.4M (typical value)
Signal Impedance: 75 Ω
Signal Interface: BNC/PAL/NTSC/SECAM
Differential Gain (DG): <1.3 %( typical value)
Differential Phase (DP): <1.3° (typical value)
Signal Noise Ratio (SNR): 63dB
u Date interface
Data Interface: RS-232、RS-422、RS-485、TTL
Data Mode: NRZ、Manchester、Bi-phase
Data Rate: 110bps-115.200Kbps
Interface Port: RJ45
u Audio
Audio input & output Level: 0.5-4Vp-pInterface Port: RJ45/RCA
u Ethernet interface(100/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Switch
Respond Time: <0.5ms
Switch Signal: 30VDC/0.5A
u Optical
Respond Time: <0.5ms
Switch Signal: 30VDC/0.5
Ringing voltage：75V
Ringing frequency：25HZ
Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
Fiber：Single-mode Fiber 9/125um
Optical interface：FC 、SC、ST
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤5W
u Dimension
Product Size: 443X110X44mm(WXDXH)
Piece Weight : 1.5KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

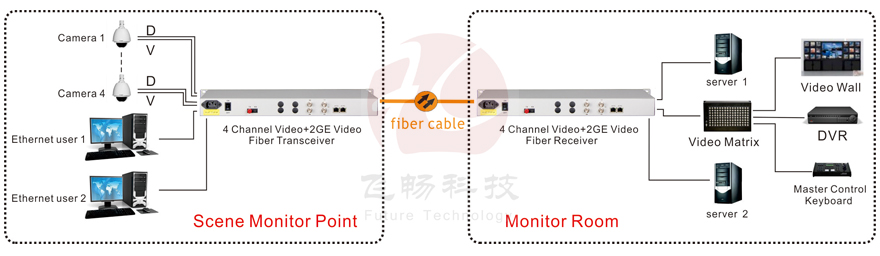

Applications
