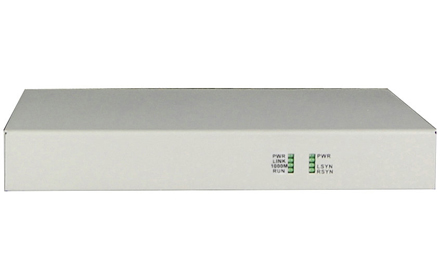

2 Channel Physical lsolation GE Fiber Media Converter

Type:FCM-G2p MessageShare

Description:2 channel physical isolation 1000M Ethernet ， total Bandwidth Bi-Directional 2*1000M

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series is IEEE802.3 Ethernet media converter, enabling four 10/100/ 1000Base-T through the optical fiber transmission, where 1,2 and 3,4 port to achieve physical isolation, were able to achieve two-way 1000M bandwidth, fiber distance (20/40/60/80/100 km), the total bandwidth of two-way 2000M.
    Two Gigabit Ethernet port has its own independent gigabit bandwidth transmission via an optical fiber, Ethernet, peer received completely independent, non-interfering, independently of each other, that is, the physical isolation. the whole stable, reliable, low power consumption, high integration, small size.
Application occasions:
    ?  finance, securities, security and construction sectors while within the network and the public information network, and requires a high degree of physical separation of the two networks for the occasion;
?  cable resources particularly intense at the same time requires a lot of separate Ethernet path of the occasion;
?  very suitable for use in the optical path without changing the existing situation on the DSLAM bandwidth expansion;

Functional Properties

? Atomatically adapt to 10/100 / 1000Mbps environment, easy to upgrade the network;
? provide physical isolation two 1000M Ethernet access line speed
? support full-duplex and half-duplex network communication, with auto-negotiation capability, electrical ports MDI/MDI-X adaptive without manual adjustment;
? support Max MTU 10240 extra-long VLAN packets that can support IEEE802.1Q agreement Items matching switches use;
? two switch ports can be divided based VLAN PORT of this partitioning method does not affect the remote device
? devices with Console port supports super terminal control device
? 1,2-port switch, 3 and 4-port switch, 1,2 and 3,4 physical isolation
? 1,2 port can be set to VLAN isolation, 3,4 port too

Technical Parameters

u Fiber

Optical encoding: 8B10B

Optical Rate: 2.5G bps

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

u 1000M Ethernet

Interface rate: 10/100/1000M, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3ab, IEEE 802.1Q

MAC Address Capability: 4096

Connector: RJ45, support AUTO-MDIX

u Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

u Dimension

Product Size : 216X140X31mm( WX DXH))

Simple packaging : 274X193 X84mm ( WX DXH)

Piece Weight: 1.8KG

u Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

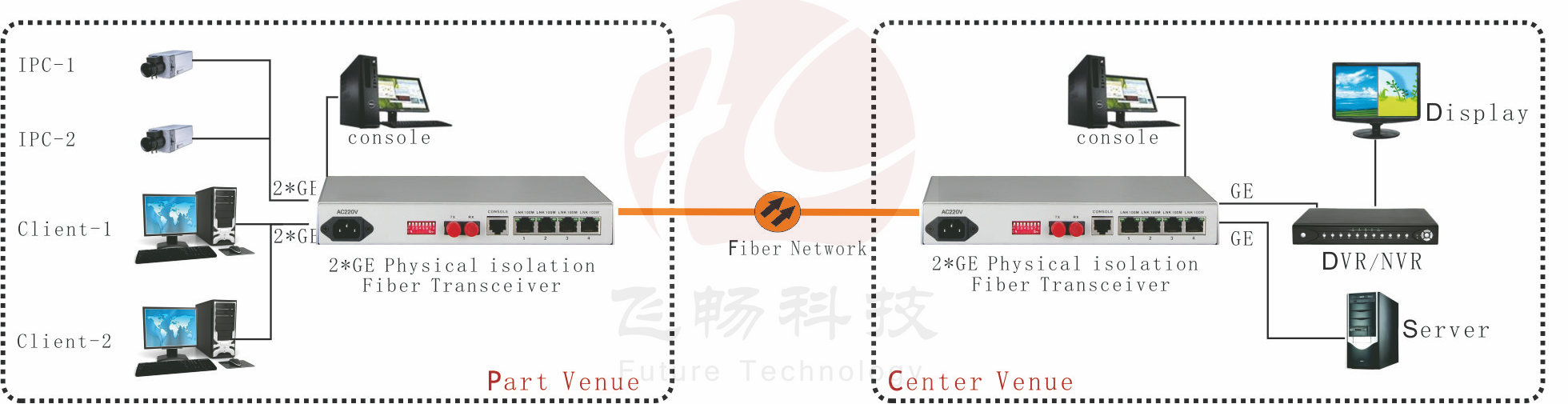

Application Scheme

Applications:

Note: Two Gigabit Ethernet physical isolation above the front IPC and even two Gigabit Ethernet PC, both of which have independent 1000M channel
