? Based on self -copyright IC
? Provides link aggregation for network switches channel, bi-directional bandwidth up to 400M
? Real channel isolation, guarantee the same circuit optical fiber transmission of 2 group network business complete physical isolation
? Support 2Channel line rate 100M Ethernet circuit
? Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable )
? The local device can indicate the remote device 220V power-off condition
? Ethernet UTP supports rate and duplex mode auto-negotiation, parallel/cross-line self-adaptable function or force mode
? Support long frame transmission, full compatibility on transmitting various extended data frame
? 2*100 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of 2 group network
business independently
? Support optical circuit interruption transfer function, interrupt alarm can be transmitted to the end device
? Support dual/single fiber transmission, different wavelength ,optical power and other optical interfaces configuration
? Different working conditions LED, can be easily and accurately know the device interface and the circuit condition
? Support SNMP Network Management
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

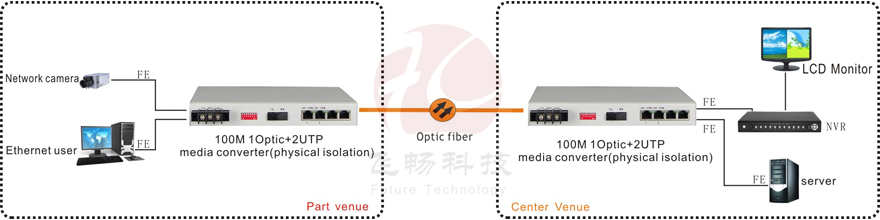

Applications
