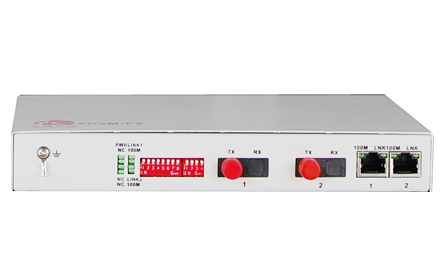

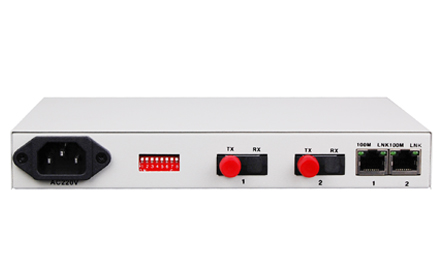

The device provides 1-2Channel 10M/100M/1000M Gigabit Ethernet interface(1000Base-T), master fiber interface and backup interface. 2Channel Ethernet interface is switch interface, can support VLAN.
? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;
? Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function ensures
that the business will never break;
? Device provides 4 Ethernet UTP, 2 Ethernet optical port
? Support full-duplex and half duplex network communication, with auto-negotiation capability;
? The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied with IEEE802.10 protocol
? 2*1000 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of 4 group network
business independently.
? Division of VLAN base PORT, this method does not affect the remote device
? 802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN
? Device provides Console port, supports Terminal control device
? Ethernet port priority setting
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Gigabit Ethernet Interface (10/100/1000M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

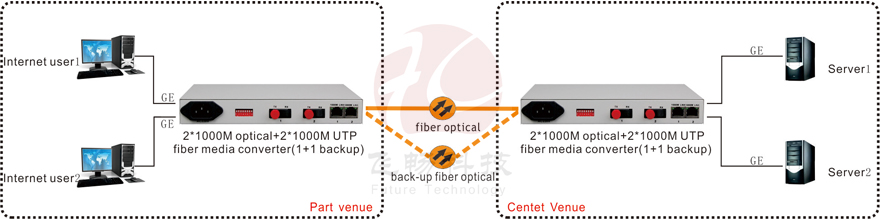

Applications
