? support full and half duplex network communication, with auto-negotiation capability, power port MDI / MDI-X Adaptive
without manual adjustment;
? support SNMP network management, you can determine when the light no LINK Ethernet fiber cut or remote shutdown is to support the
local device to the remote device configuration, you can set the local device and remote SNMP devices in the following functions:
u Ethernet copper ports each way five operating mode setting;
u every channel Ethernet electrical interface flow control switch;u provide up to three kinds of Ethernet isolation mode, you can come in to support demand with Vlan Tag isolation and without Vlan
Tag Ethernet packet;
u Ethernet UTP Interface
Interface rate: 10/100 M, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm, 1550nm
Interface rate: 100 M, half/full duplex
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

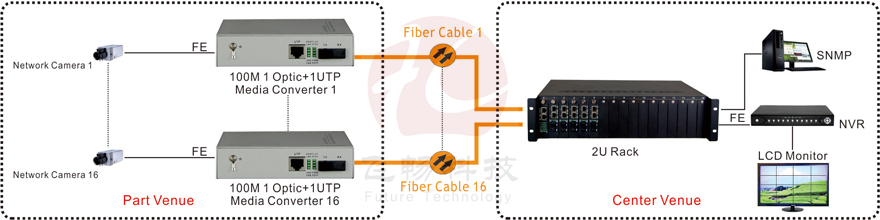

Applications
