Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;
Ø Device provides 1 Ethernet UTP 8 Ethernet optical port
Ø Support full-duplex and half duplex network communication with auto-negotiation capability;
Ø The Ethernet interface supports jumbo fr
Ø Division of VLAN ba
Ø 802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN
Ø Support the QinQ and MAC-In-MAC VLANS .
u Ethernet UTP Interface
Interface rate: 10/100 M half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u Optical Ethernet interface
Wave Length: 1310nm 1550nm
Interface rate: 100 M half/full duplex
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

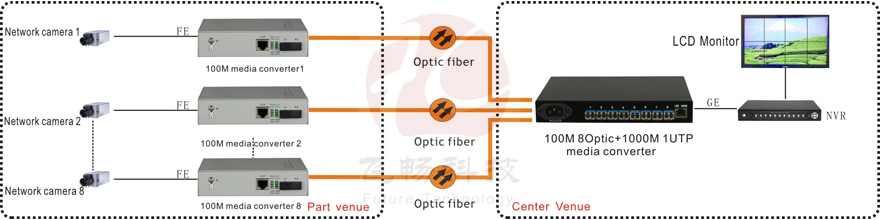

Applications
