Interface Rate:2048K
Interface character: match ITU-T V.24
Connector: DB25 male/female (optional).
Interface type: DCE
Clock: G.703 resume clock, internal /RS530 external clock.
u Ethernet interface
Interface Standard: comply with protocol G.703;
Interface Rate: 2048Kbps±50ppm;
Interface Code: HDB3;
Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product size: 485X438X44mm(WXDXH)
Simple packaging: 522X198X82mm(WXDXH)
Piece weight : 1.8KG
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

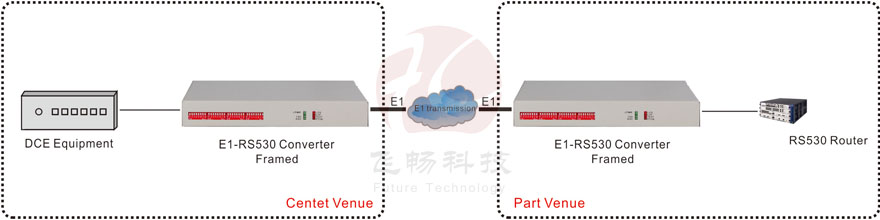

Applications 1

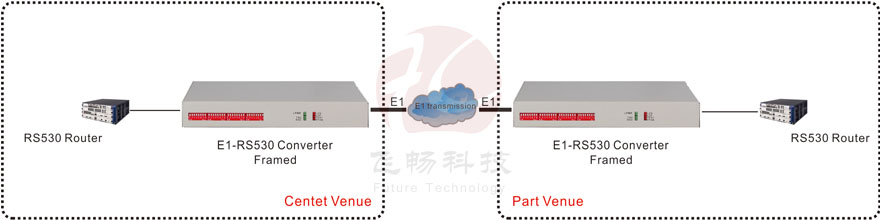

Applications 2
