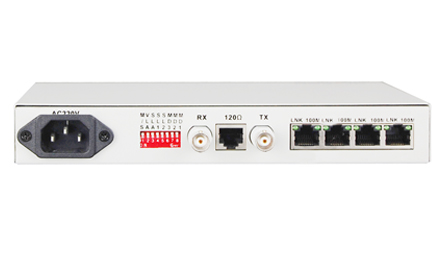

Unframed E1-4FE Converter

Type:FCC-E1F4 MessageShare

Description:1channel unframed E1 - 4FE converter ，With E1 loopback detection function

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

E1-4ETH interface converter is based on FPGA. The device provides the transition between ITU-T G.703 (E1) standard unframed E1 interface and 10/100Base-T interface. It is a high capability, self-adaptable long-distance Ethernet bridge. The product is small and with low cost. It is widely used in connecting between WAN and LAN, monitoring, etc

Functional Properties

? Based on self -copyright IC

? Can realize monitor and control of remote equipment, OAM management data did not take up users’

timeslot and save E1 bandwidth

? Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop return;
? Have indicator when the device is power-off or E1 line is broken or lose signal;
? Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
? The Ethernet interface supports jumbo frames (1916 Bytes);
? 4Channel 10M/100M Ethernet interface can isolate each other to realize communication independently;

? Ethernet interface supports10M/100M, half/full duplex auto-Negotiation and AUTO-MDIX (crossed line and straightly

connected line self-adaptable );

? Provide 2 clock types: E1 master clock and E1 line clock;

? Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

Ethernet interface Loop Back(REM)

? Have pseudo random code test function, easy the installation and maintenance;
? Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
? Have Ethernet monitor self-reset function, the equipment will not dead

? Ethernet interface supports the counters of receiving and transmitting frame, receives wrong frame counters. E1 interface supports

the counters of receiving wrong frame;

? Realize monitor of remote equipment temperature and voltage from local equipment;
? Support SNMP Network Management;
? Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)

Technical Parameters

u E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

u Ethernet interface (10/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

u Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

u Dimension

Product Size : 216X140X31mm( WX DXH))

Simple packaging : 274X193 X84mm ( WX DXH)

Piece Weight: 1.2KG

u Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

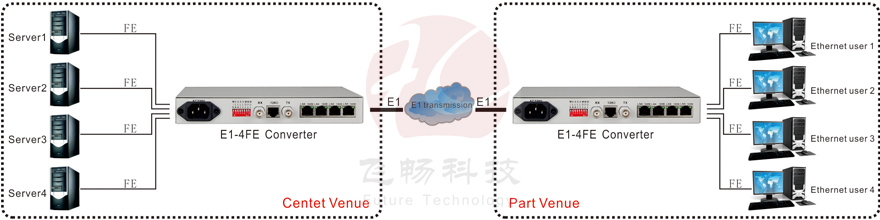

Application Scheme

Applications

DataSheet Download
