Unframed E1-FE Converter

Type:FCC-E1F1 MessageShare

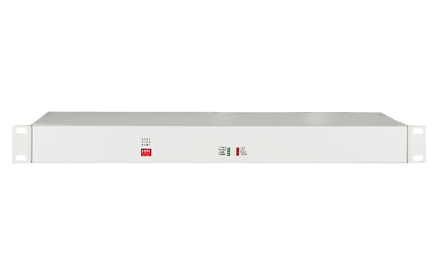

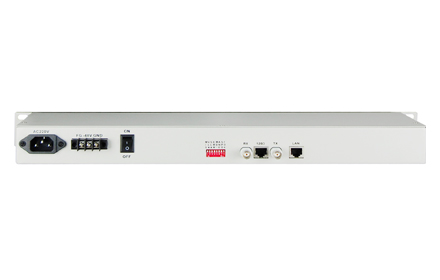

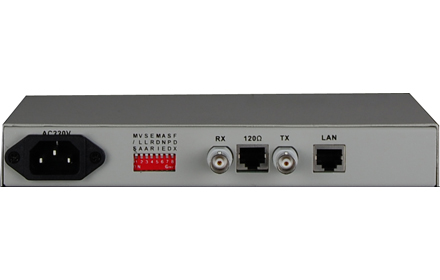

Description:1channel unframed E1 - FE converter，With E1 loopback detection function

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This interface converter provides one unframed 2048K E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Functional Properties

? Based on self -copyright IC

? Support unframed mode (2048K) set and can manage the remote device condition ,

OAM management data did not take up user’s timeslot

? Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop back;
? Have indicator when the device is power-off or E1 line is broken or lose signal;
? Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
? The Ethernet interface supports jumbo frames (2036 Bytes);
? Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering

? Ethernet interface supports10M/100M, half/full duplex auto- Negotiation and AUTO-MDIX

(crossed line and straightly connected line self-adaptable );

? Have Ethernet monitor self-reset function, the equipment will not dead
? Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
? Provide 2 clock types: E1 master clock and E1 line clock;
? The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)

? Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

Ethernet interface Loop Back(REM)

? Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
? Support SNMP Network Management;
? Can realize monitor of remote equipment temperature and voltage from local equipment;
? Can form the structure: Ethernet E1 Bridge(A)－－-E1 Optical Fiber Modem(B)－－-Ethernet Optical Fiber Modem (C)

? Can form the structure: Ethernet E1 Bridge(A)－－-Optical Ethernet Modem(B)－－-Ethernet Optical Fiber Transceiver (C),

can manage (B) and (C) at (A)

Technical Parameters

u E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

u Ethernet interface (10/100M)

Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

u Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

u Dimension

Product Size : 216X140X31mm( WX DXH))

Simple packaging : 274X193 X84mm ( WX DXH)

Piece Weight: 1.2KG

u Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

Application Scheme

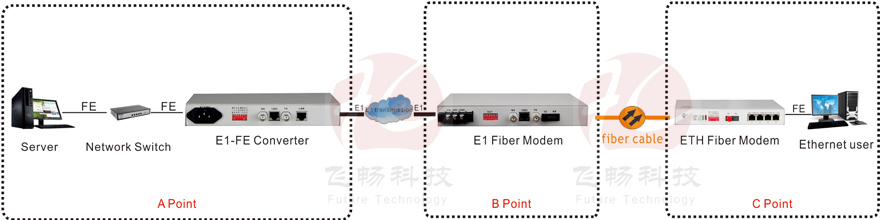

Applications 1

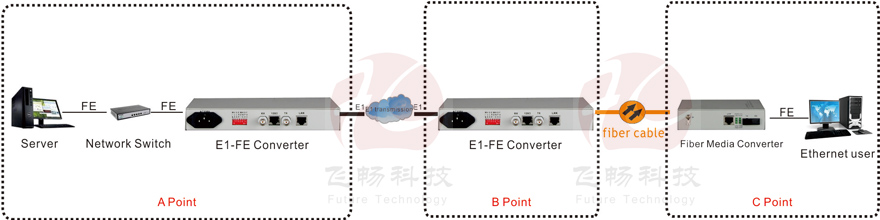

Applications 2

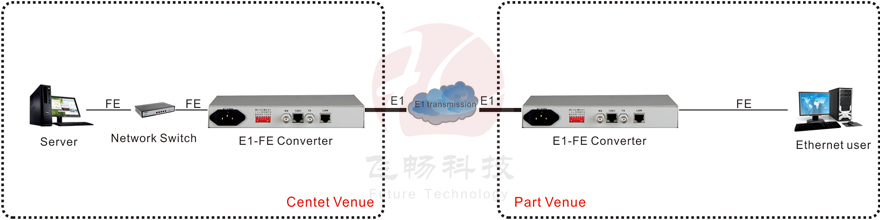

Applications 3
