? Ethernet interface supports10M/100M, half/full duplex auto- adaptable and AUTO-MDIX (crossed line and
straightly connected line self-adaptable )
? CRC automatic alarm threshold can be set to isolate the poor quality transmission lines and cut off a single-direction. When 2M branch
circuit onedirection error rate exceeds threshold, cutting off this direction the other direction is not affected; that is to say, both of the
Ethernet directiontransmission can be asymmetric
? Allow 8-Channel E1 transmission time delay difference 100ms. When the margin exceed the allowed range, the system can automatically
stopon the E1 that time delay is too large to send data
? E1 interface conform to ITU-T G.703, G.704 and G.823, not support the use of signal timeslotu E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance), 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension

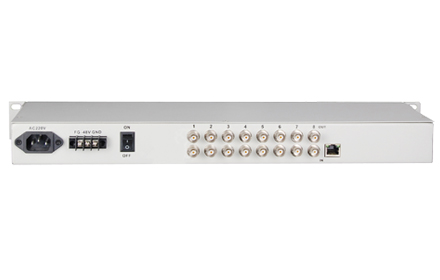

Product size: 19 inch 1U 485X138X44mm(WXDXH)
Simple packaging : 522X198X82mm( WXDXH)
Piece weight : 1.8KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

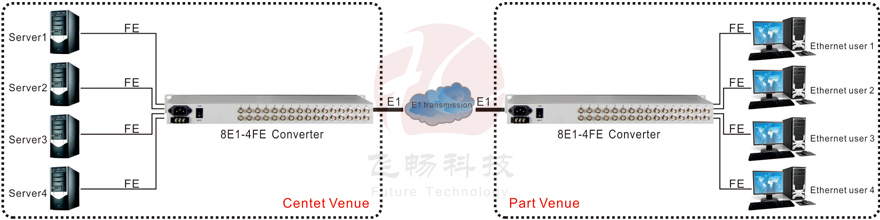

Applications
