? Based on self -copyright IC
? Can Realize Ethernet data transmission in one Co-directional G.703 circuit
? Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
? The local device can manage the remote device
? Have the function of G.703 loop back check, and indicate on LED
? Can differentiate the reason of Co-directional G.703 lose signal is that the remote device power-off or directional G.703 line broken
? Ethernet interface supports 10M/100M, half/full duplex auto- adaptable, supports VLAN
? Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable );
? Provide 2 clock types: Co-Directional G.703 master clock and G.703 line clock;
? The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)
? Have three Loop Back Mode: G.703 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote Ethernet
interface Loop Back(REM)
? Support self-adaptable 120 Ohm balance;
Interface Standard: comply with protocol ITU-T G.703;
Interface Rate: 64Kbps±50ppm;
E1 Impedance: 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Maximum Transmission Distance: up to 500m
u Ethernet interface (10/100M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size : 216X140X31mm( WX DXH))
Simple packaging : 274X193 X84mm ( WX DXH)
Piece Weight: 1.2KG
u Working environmentWorking temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

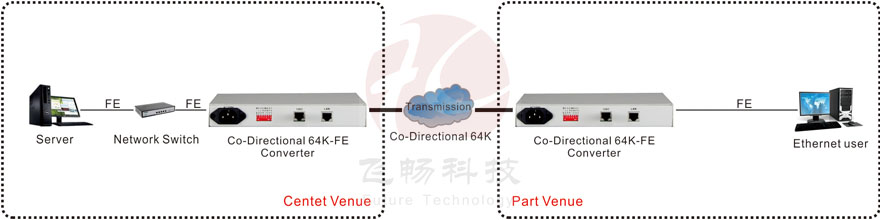

Applications
