? data interface and audio interface provides three mine-protected, by ITU-T K.21 (10/700 μS),
common mode: 6KV, impedance (40 Ω) test
? single fiber transmission, optional dual fiberu Audio
Audio input & output Level: 0.5-4Vp-pInterface Port: RJ45/RCA
u Optical
Respond Time: <0.5ms
Switch Signal: 30VDC/0.5
Ringing voltage：75V
Ringing frequency：25HZ
Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
Fiber：Single-mode Fiber 9/125um
Optical interface：FC 、SC、ST
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 216X140X31mm(WXDXH)
Piece Weight : 2KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

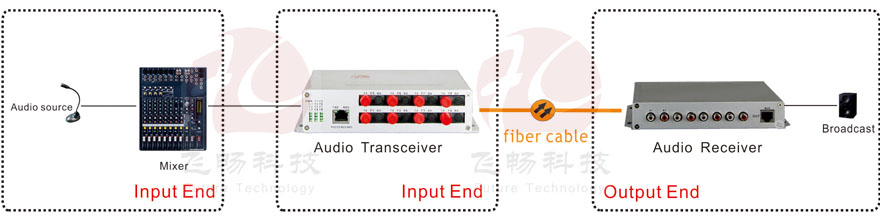

Applications
