4voice+4GE+2Serial Fiber MUX

Type:FCP-O4G4R2/FCP-S4G4R2 MessageShare

Description:The Equipment supports 4*1000M Ethernet +4*Voice+ 2*RS232/422/485/Dry contact interface to the optical fiber converter, to achieve network + telephone + serial data + Dry contact 4 type interface in the same core Optical fiber transmission,

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

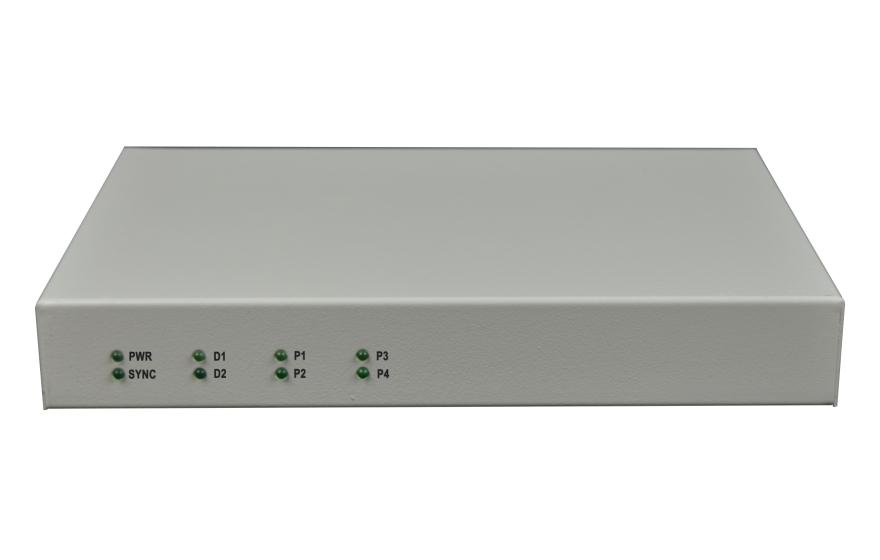

Product Description

The Equipment supports 4*1000M Ethernet +4*Voice+ 2*RS232/422/485/Dry contact interface to the optical fiber converter, to achieve network + telephone + serial data + Dry contact 4 type interface in the same core Optical fiber transmission, is widely used in a variety of industrial control, card, instrumentation and other occasions, not only save fiber resources, but also save fiber equipment, reduce the point of failure, to facilitate the maintenance of equipment. 4*1000M Ethernet interface bandwidth for the wire speed 1000M.

Functional Properties

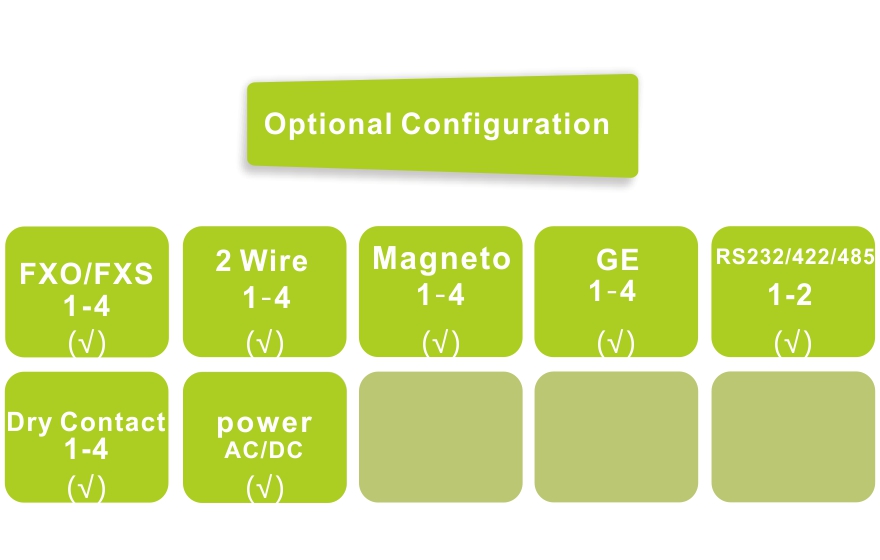

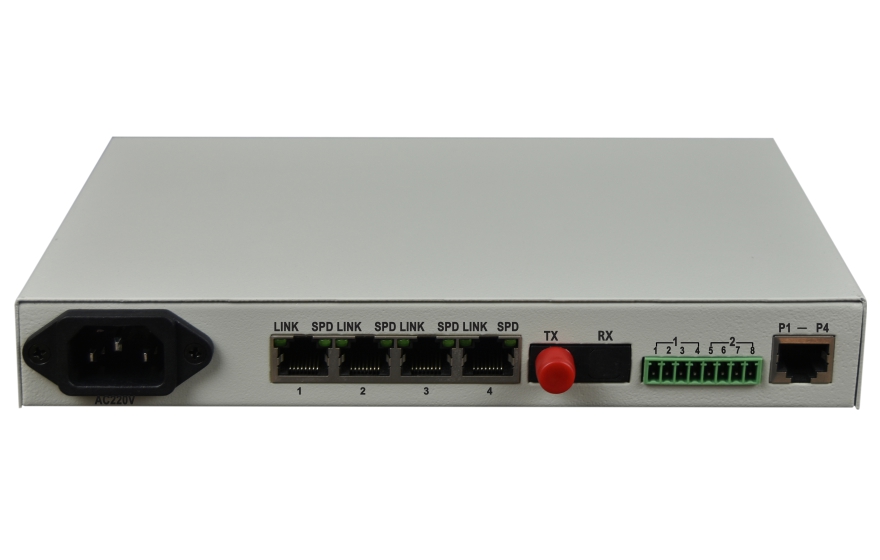

◆ Equipment to provide 4*1000M GE port; 4*Voice interface, 2*serial data interface / 4*dry contact;

◆ Voice port support FXO/FXS/2 Wire Audio/Magnet phone interface, FXO port plug into PBX, FXS port is connected to the user's telephone;

◆ FXO/FXS telephone interface, support caller ID / reverse polarity billing / fax function;

◆ Both sides of the device support FXO+FXS hybrid access;

◆ RS232/RS485/RS422/TTL/Dry contact transmission channel, flexible application;

◆ Serial interface can be transmitted asynchronously from 300-115200 baud rate adaptive serial data;

◆ 4*GE, bandwidth wire speed 1000M, automatically adapt to 10/100/1000Mbps ,easy to upgrade the network;

◆ Ethernet interface supports full-duplex and half-duplex network communication with auto-negotiation capability, MDI / MDI-X adaptive without manual adjustment;

◆ A variety of power options: AC220V, DC-48V / DC24V;

◆ Telephone/Ethernet/serial-data interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;

Technical Parameters

◆ Fiber

Multi-mode Fiber

50/125um 62.5/125um

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

◆ Ethernet interface(100/100M)

Interface rate: 10/100 Mbps half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45 support Auto-MDIX

◆ FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

◆ EM 2/4 Line

AD: 0dB

DA: -3.5dB

Two/Four-line Impedance: 600 Ohm

Return loss: 20 dB

◆ Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

◆ Dimension

Product Size: 216X140X31mm(WXDXH)

Piece Weight : 1KG

◆ Working environment

Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

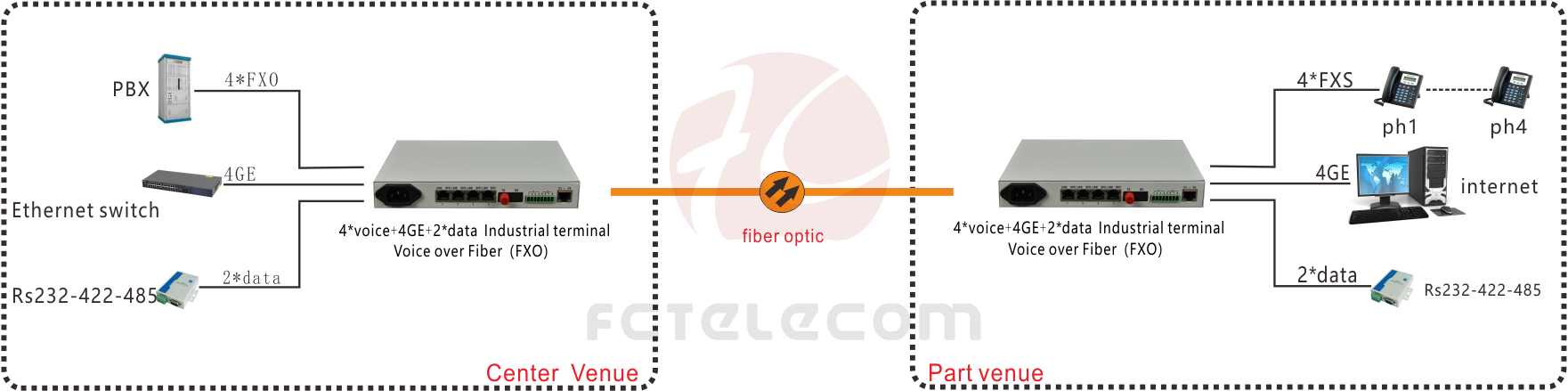

Application Scheme

DataSheet Download
