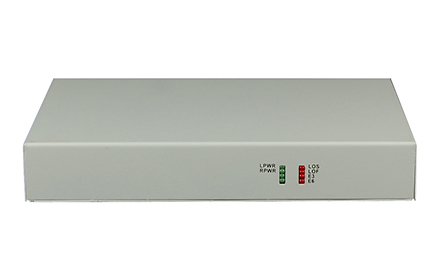

Fiber-4Voice+2GE multiplexer（Mini type)

Type:FCP-O4G2/S4G2 MessageShare

Description:4FXS/FXO,2*1000M ethernet，Mini type.

Product Description

Functional Properties

Technical Parameters

Application Scheme

DataSheet Download

Product Description

This series is based on the company's proprietary research on VLSI, developed point to point optical transmission equipment. This product provides 1~4channel FXO/FXS/2/4 wire audio, Magnet telephone Interface; two Gigabit Ethernet interface, support VLAN division. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size.

Functional Properties

? Based on self -copyright IC;
? 1 ~ 4channel voice access, support caller ID function and reverse polarity billing functions;
? 2channel Ethernet interface, the rate of 10/100/1000M, full / half duplex adaptive, 2x Ethernet can be set to logical isolation;
? Support FXO/FXS, EM2/4 audio, Magnet telephone Interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;
? Support Telephone Number mutual function of each site;
? optical port unrepeated transmission distance of up to 2 to 100 km;
? Telephone interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs,the peak output voltage 6KV open standards.
? Multiple power mode options: AC220V, DC-48V / DC24V, etc;

Technical Parameters

u Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Ethernet interface(10/100/1000M)

Interface rate: 10/100/1000 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u FXS Phone Interface

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u FXO Switch Interface

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

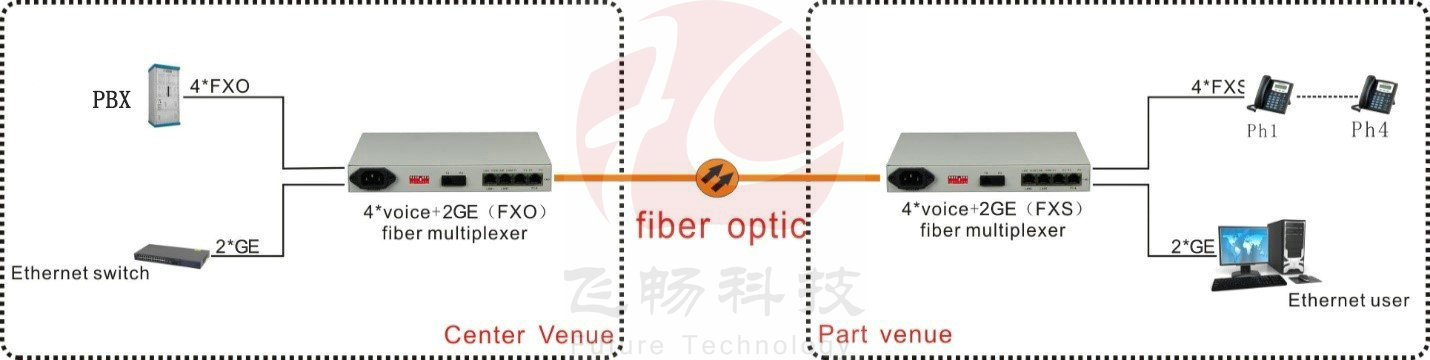

Application Scheme

Application:

DataSheet Download
