Ø ba

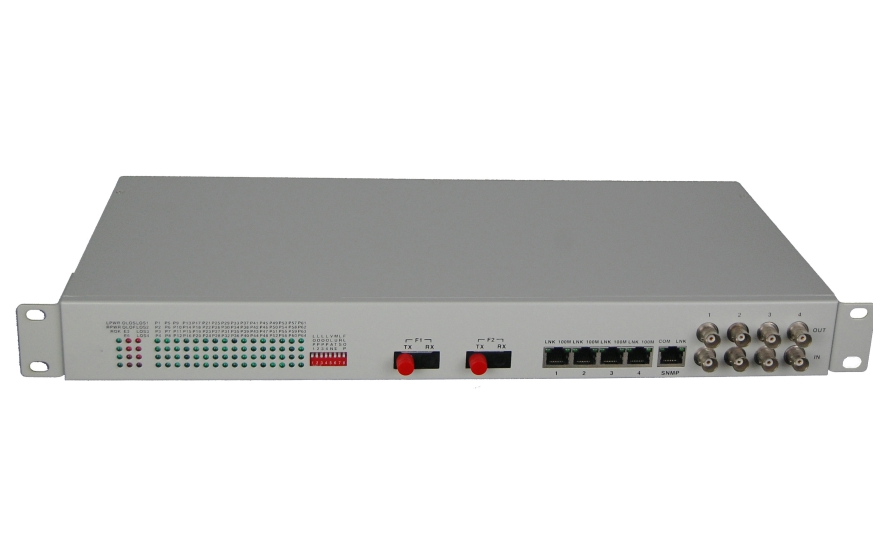

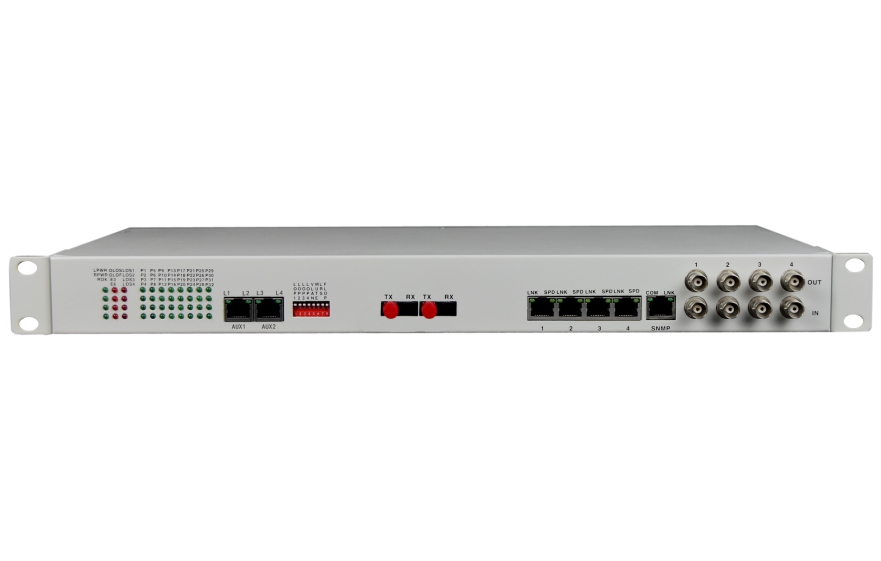

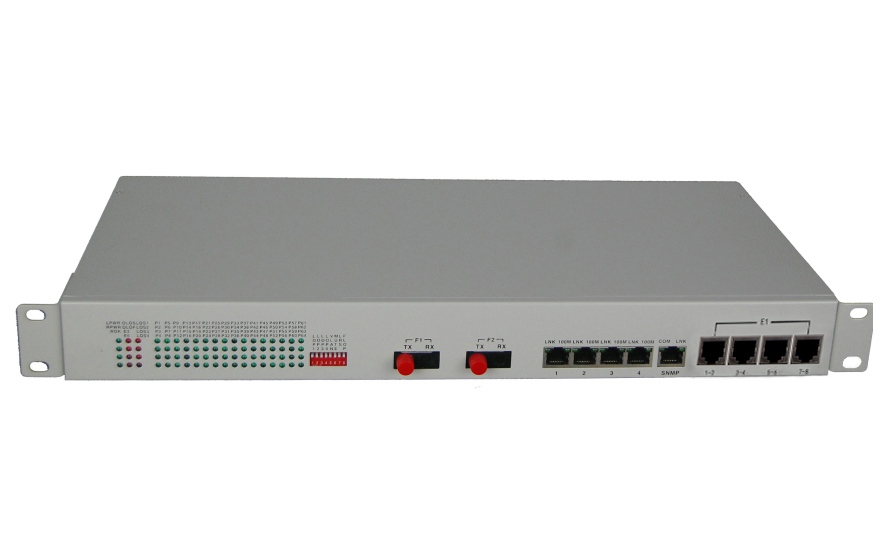

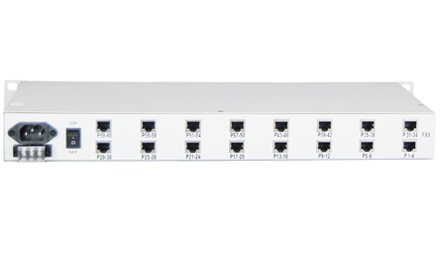

Ø 1U19-inch rack-mount;
Ø 1-60 channels of voice access supports Caller ID and reverse polarity billing functions;
Ø Support Telephone Number mutual function of each site;
Ø support FXO voice port FXS ports and ports EM2 / 4 audio interface magneto telephone interface; FXO port and PBX docking port and
the user is connected to FXS telephone;
Ø E1 interface complies with G.703 recommends using digital clock recovery and smooth phase-locked technology;
Ø optional 4-channel Ethernet interface for the exchange of the mouth it can be divided VLAN;
Ø Ethernet interface rate of 10/100 / 1000M full / half duplex adaptive;
Ø can detect when the optical signal is lost for the end device powered down or fiber barrier and through the LED indicates alarm;
Ø with this end in view job status display function remote device;
Ø Provide command remote loopback interface easy to line maintenance;
Ø Provide Console management interface easy to install open;
Ø unrepeated transmission distance of up to 2 to 120 km;
Ø multiple power mode options: AC220V DC-48V / DC24V etc;
Ø DC-48V / DC24V power supply with automatic polarity detection function when installed without distinction between
positive and negative;
Ø telephone interface with lightning protection lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs
open-peak output voltage 6KV standards.
u Fiber
Multi-mode Fiber
50/125um 62.5/125um
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u E1 Interface
Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;
E1 Impedance: 75Ω (unbalance) 120Ω (balance);
Jitter tolerance: In accord with protocol G.742 and G.823
Allowed Attenuation: 0~6dBm
u Gigabit Ethernet Interface (10/100/1000M)
Interface rate: 10/100 Mbps half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45 support Auto-MDIX
u FXS Phone Interface
Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u FXO Switch Interface
Ring detect voltage: 35V
Ring detection frequency: 17HZ-60HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss: 40 dB
u EM 2/4 Line
AD: 0dB
DA: -3.5dB
Two/Four-line Impedance: 600 Ohm
Return loss: 20 dB
u Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 485X200X45mm(WXDXH)
Piece Weight : 2.4KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

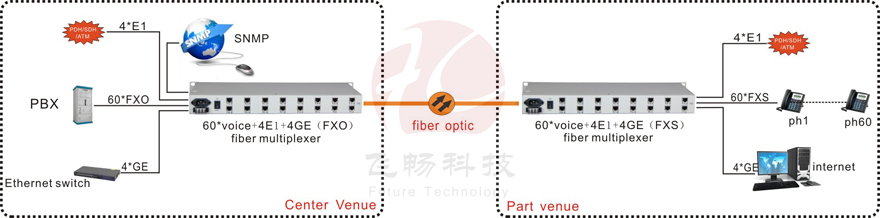

Applications
