? International Standard: IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T
? Automatically adapt to 10Mbps,100Mbps,1000 Mbps environment, upgrade network easily
? Support full-duplex and half duplex network communication, with auto-negotiation capability;
? The Ethernet interface supports jumbo frames, which can match with the switch product complied with IEEE802.10 protocol
? Support UTP cross connection switch optional, convenient for system debugging and setup
? Low power consumption, Low heating, can be stable work for a long time;
? Single-core optical fiber and internal and external power optional, expands user's needs
u Fiber
Multi-mode Fiber
50/125um, 62.5/125um,
Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power: -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity: -28dBm (Min)
Link budget: 16dBm
Single-mode Fiber
8/125um, 9/125um
Maximum transmission distance: 40Km
Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length: 1310nm
Transmitting power: -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity: -27dBm (Min)
Link budget: 18dBm
u Ethernet interface(100/100/1000M)
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
u Power

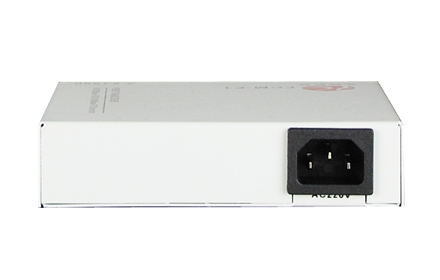

Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
u Dimension
Product Size: 136X131X31mm(WXDXH)
Piece Weight : 1KG
u Working environment
Working temperature: -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity: 5%~95 % (no condensation)

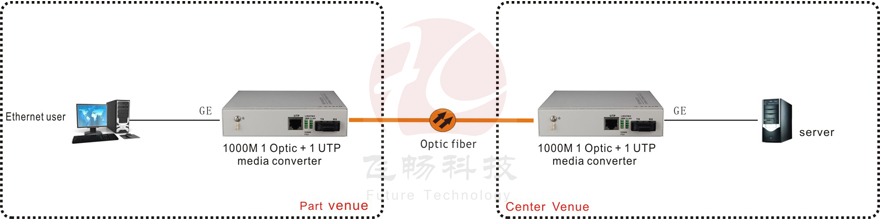

Applications 1

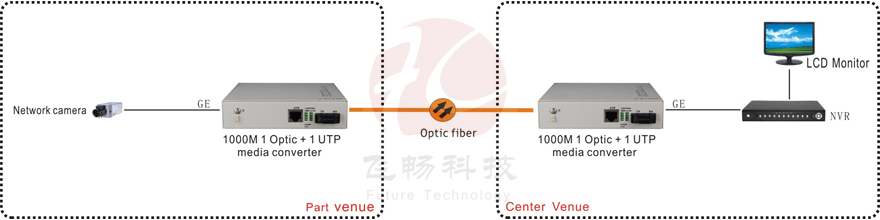

Applications 2
